The sinuses are air-filled cavities in the skull that help lighten its weight, humidify air, and enhance voice resonance.
Our sinus diagram helps you visualize the different sinus cavities in your head and understand where your sinus issues might be coming from. . Whether it’s pressure in your forehead, pain between your eyes, or congestion in your cheeks, pinpointing the source can be the first step toward real relief.Common sinus problems include sinusitis, nasal congestion, allergies, and infections. In fact, sinusitis affects over 30 million adults each year in the U.S. alone! Research even shows that visual learning tools like diagrams can boost comprehension and retention by up to 65%.
This article provides detailed diagrams of each sinus.
Anatomy of the Sinuses
The sinuses are hollow, air-filled extensions of the nasal cavity. They are referred to as the paranasal sinuses. These sinuses are situated in various bones of the skull and are named accordingly: frontal, maxillary, ethmoid, and sphenoid. Each of these sinuses plays a crucial role in lightening the weight of the skull, humidifying the air we breathe, and enhancing our voice resonance.
The frontal sinuses, positioned above the eyes in the forehead, are pyramid-shaped and divided into two cavities by the frontal septum. The maxillary sinuses, the largest of all, lie under the eyes and behind the cheeks, making them particularly susceptible to infections due to their drainage pathways.
Then there are the ethmoid sinuses, a complex structure of five to fifteen small air cells located between the nasal cavities and the orbits.
Lastly, the sphenoid sinuses are found between the eyes and behind the nose, nestled within the sphenoid bone. These sinuses, although smaller, have significant roles and develop notably after puberty.
All sinuses are lined with a special tissue that helps in mucus production, keeping our nasal passages moist and trapping any foreign particles.
Frontal Sinuses
The frontal sinuses are located within the frontal bone, just above your eyes. These sinuses are triangular in shape and divided into two cavities by the frontal septum.
The unique structure of these sinuses allows them to play a significant role in voice resonance and in the overall functioning of the nasal cavity.
When it comes to drainage, the frontal sinuses drain through the frontonasal duct, which opens into the hiatus semilunaris in the middle meatus of the nasal cavity. This efficient drainage system helps prevent the build-up of mucus, reducing the risk of sinus infections.
Ethmoid Sinuses
The ethmoid sinuses are a unique and intricate structure, consisting of multiple small air-filled cavities located within the lateral mass of the ethmoid bone.
These sinuses are divided into three parts: anterior, middle, and posterior, each with distinct drainage pathways into the nasal cavity. This complex structure ensures that air flows freely and mucus drains properly, which is crucial for maintaining ethmoid sinus health.
Each group of ethmoid sinuses has specific drainage pathways that direct mucus into the nasal cavity. The anterior ethmoidal cells drain into the middle nasal meatus, while the posterior ethmoidal cells drain into the superior nasal meatus. This precise drainage system helps in preventing blockages and infections.
Sphenoid Sinuses
The sphenoid sinuses reside deep within the sphenoid bone, positioned just beneath the sella turcica, an important structure in the brain. These sinuses are often asymmetric and are separated by a septum. Although they start as small structures at birth, the sphenoid sinuses develop significantly after puberty.
These sinuses drain into the nasal cavity at the sphenoethmoidal recess, located above the superior concha. Proper drainage is vital to prevent the build-up of mucus, which can lead to sinus infections and other complications.
Maxillary Sinuses
The maxillary sinuses are the largest of the paranasal sinuses, situated slightly below and to the sides of the nasal cavities. These sinuses are particularly prone to infections due to their drainage pathways, which can easily become blocked. When these pathways are obstructed, mucus builds up, leading to pain and pressure in the cheeks and teeth.
Their drainage into the nasal cavity occurs at the semilunar hiatus located in the middle meatus, a pathway that, when blocked, often results in sinus infections and chronic sinusitis, which are commonly addressed by specialists in ear nose and throat.

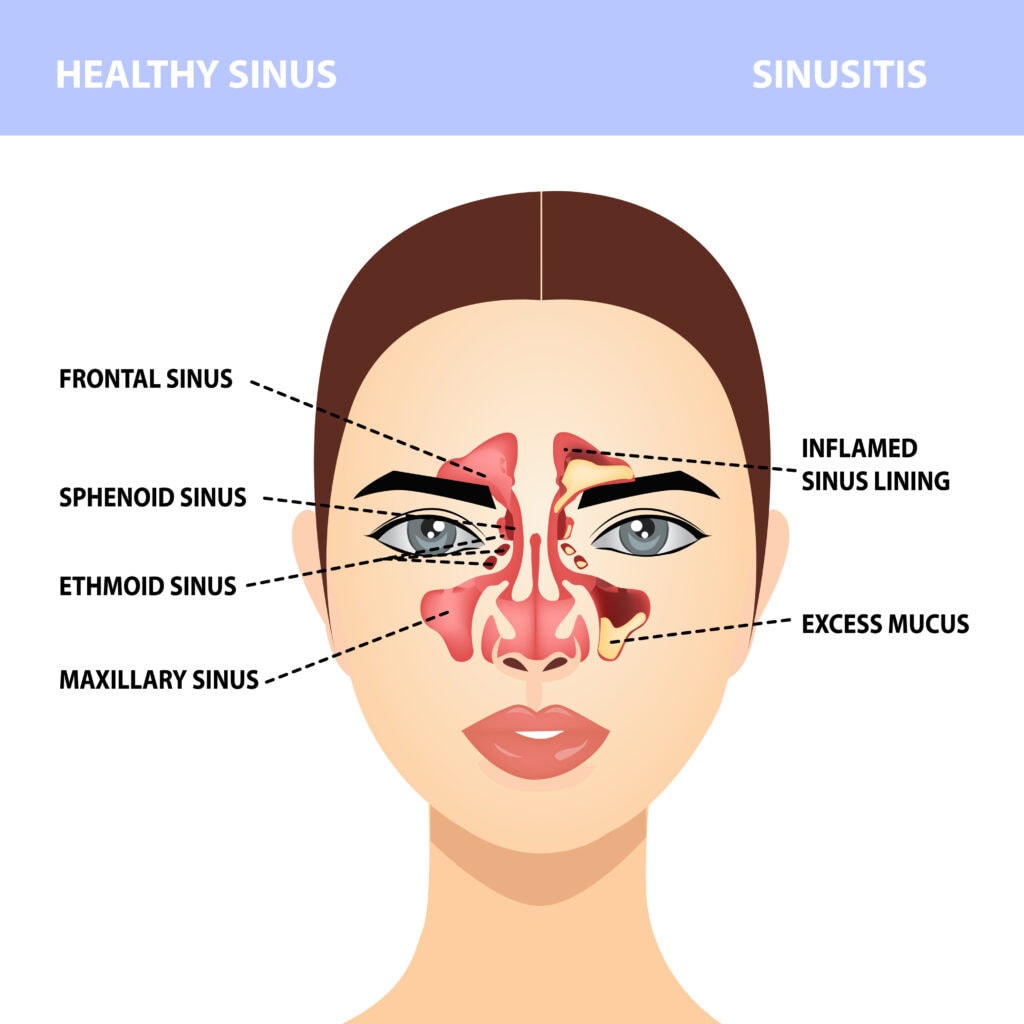

Sinus Diagram with Labeled
Sinus Drainage Pathways
The frontal sinus drains into the nasal cavity through the frontonasal duct, which opens into the middle meatus. This area, known as the frontal recess, serves as a transitional zone between the frontal sinus and the middle meatus.
The ethmoid sinuses are categorized into anterior, middle, and posterior groups, each with distinct drainage pathways.
The anterior ethmoidal cells drain into the middle nasal meatus, while the posterior cells drain into the superior nasal meatus. This precise drainage system helps ensure that mucus is efficiently cleared from the sinuses.
The maxillary sinus drains into the nasal cavity at the semilunar hiatus in the middle meatus, while the sphenoid sinus drains at the sphenoethmoidal recess, located above the superior concha. Proper drainage of these pathways is essential to prevent the build-up of mucus and subsequently, sinus infections.
Common Sinus Conditions
Sinus conditions can range from mild to severe, with symptoms often including facial pain, congestion, runny nose, and postnasal drip.
Acute sinusitis, for instance, can evolve into chronic sinusitis if left untreated. Chronic sinusitis is characterized by sinusitis symptoms persisting for over 12 weeks. This condition continues even with treatment efforts. Environmental factors like exposure to pollutants and cigarette smoke can increase the risk of chronic sinusitis.
Let’s delve into some common sinus conditions:
Acute Sinusitis: Often triggered by colds, COVID-19, or nasal allergies, acute sinusitis can cause severe nasal congestion and discomfort.
Chronic Sinusitis: This condition persists for over 12 weeks and is often associated with nasal polyps or a deviated nasal septum.
Nasal Polyps: These are soft, painless, noncancerous growths on the lining of the nasal passages or sinuses that can obstruct normal airflow and fluid drainage.
More serious sinus infections can occur due to fungi, particularly in individuals with weakened immune systems. Bacterial infections often follow viral sinus infection and can be more severe, sometimes requiring antibiotics for treatment.
Diagnostic Tools for Sinus Issues
Diagnosing sinus issues accurately is vital for effective treatment. CT scans and imaging procedures are essential tools in this process, providing detailed anatomical views that conventional X-rays cannot. Coronal CT views, in particular, offer the best correlation with surgical findings and visualize the complete ostiomeatal complex.
Here’s what each diagnostic tool can reveal:
CT Scans: These produce multiple slices, showcasing detailed anatomical views where white represents bone, grey indicates soft tissues, and black shows air.
Nasal Endoscopy: This procedure involves taking a closer look at the sinuses and potentially taking a sinus culture to identify infections.
X-rays: Although less detailed than CT scans, X-rays can help determine the location of a suspected infection.
Treatments
Treatments for sinus conditions vary widely, depending on the cause and severity of the issue. Intranasal glucocorticoids, for instance, can provide symptomatic relief for individuals with allergic rhinitis and sinus infections. Over-the-counter pain relievers can also help manage fever and pain associated with sinus infections.
In cases of bacterial sinusitis, antibiotic therapy is typically guided by the patient’s risk factors for antibiotic resistance.
For those suffering from chronic sinusitis, surgery might be necessary, especially if there are complications arising from nasal polyps. Sphenoid sinus surgery can be performed endonasally to treat conditions like sinusitis.
Non-medical treatments such as nasal saline irrigation can alleviate discomfort and may reduce reliance on pain medications.
Preventing Sinus Problems
Prevention is always better than cure, especially when it comes to sinus problems. Maintaining good hand hygiene is essential to prevent sinus infections. Vaccinations, such as the flu and pneumococcal vaccines, can help reduce the risk of sinus infections.
Here are some strategies to keep your sinuses healthy:
Avoid Allergens: Stay away from allergy triggers that can cause inflammation in the nasal passages.
Quit Smoking: Avoiding cigarette smoke is crucial for sinus health.
Use a Humidifier: Keeping the air moist with a clean humidifier can support sinus health.
Additionally, avoiding close contact with individuals suffering from upper respiratory infections can minimize the risk of sinus issues.
Wrap Up
From the detailed diagrams of each sinus type to the discussions on drainage pathways, diagnostic tools, and treatment options, this guide has covered all essential aspects of sinus health.
